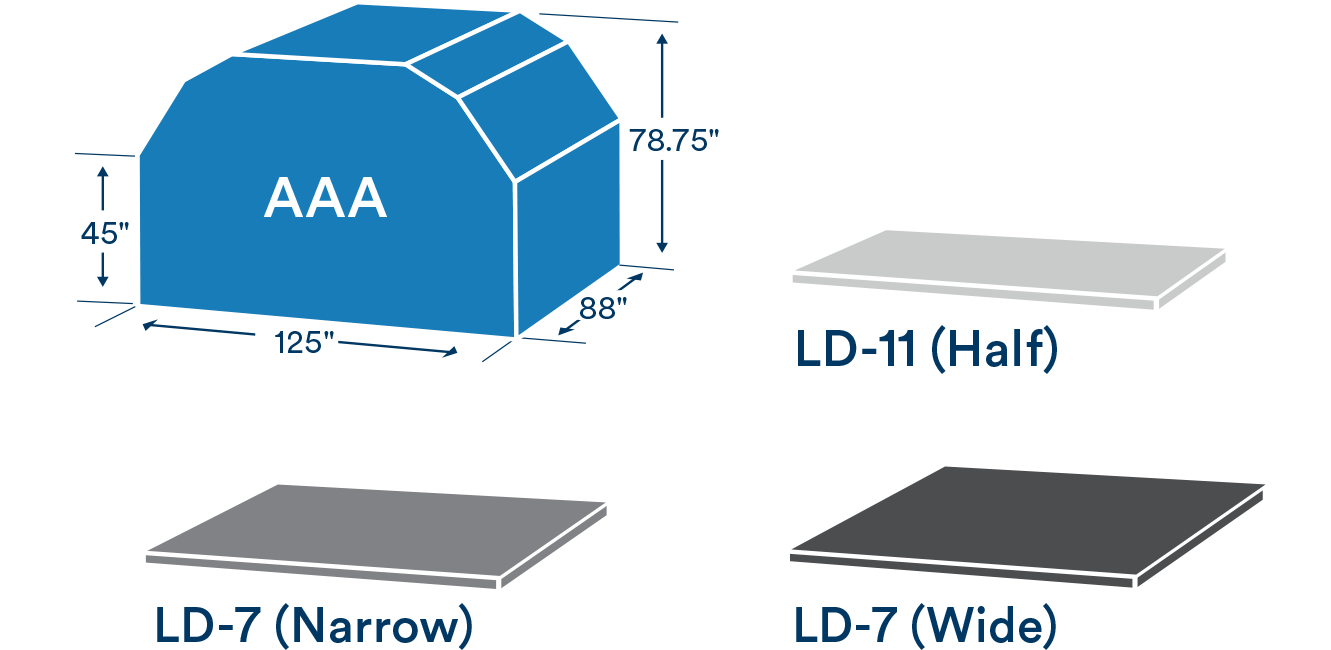

AYK / AYF / AAA

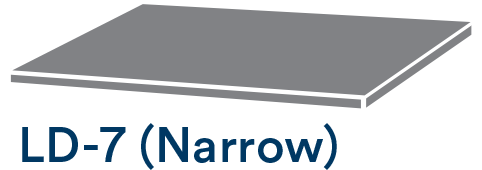

LD-7 (Narrow)
AAA / AKE
LD-7 (Narrow)
LD-7 (Narrow)
AKE
AYE
LD-7 (Wide)

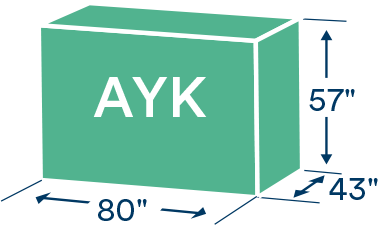

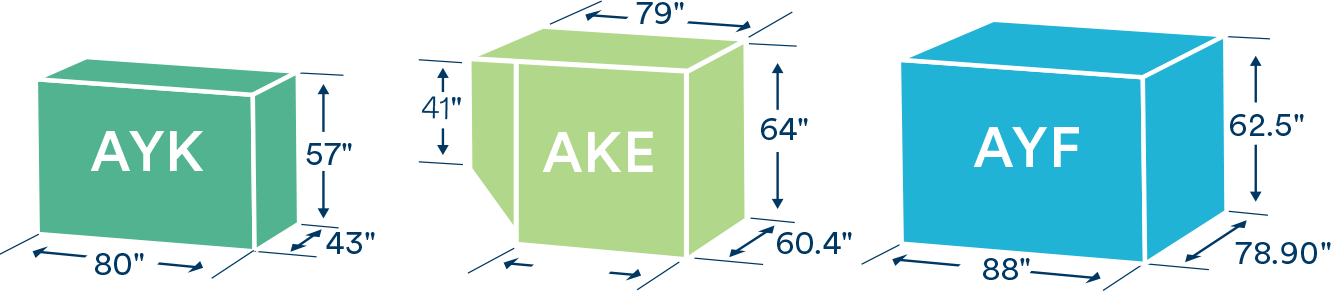

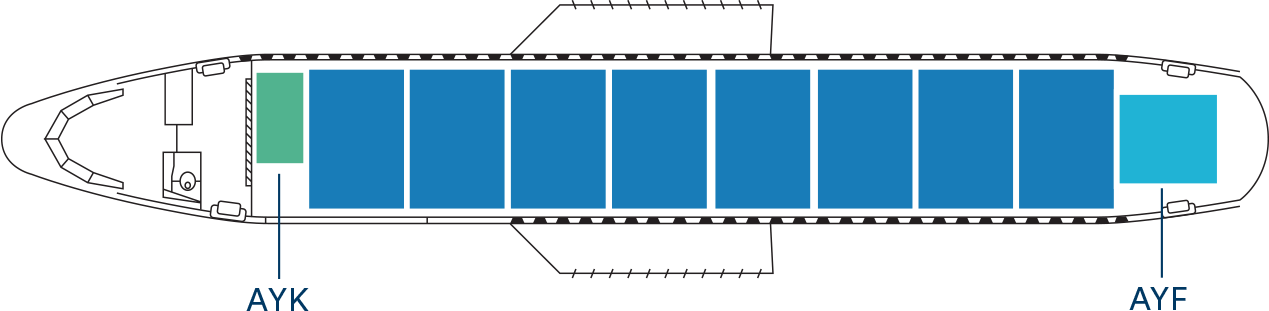

Aircraft: 737-700F
Dimensions: 43" x 80" x 57"
Max Gross Weight: 1,760 lbs (797 kg)
Volume: 101 cubic feet

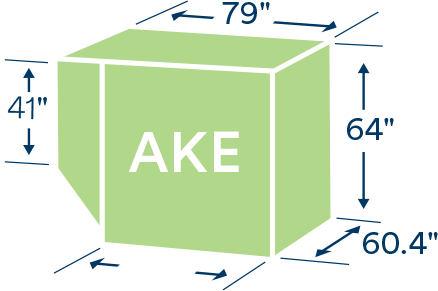

Aircraft: 737-800F, 787, A330
Dimensions 60.4" x 61.5" x 64"
Max Gross Weight: 3,500 lbs (1,587 kg)
Volume: 150 cubic feet

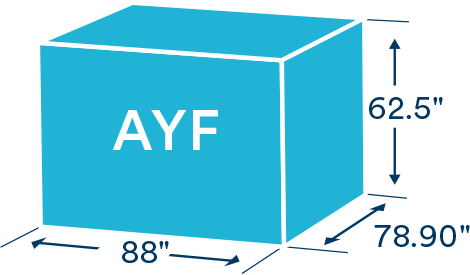

Aircraft: 737-700F
Dimensions: 78.9" x 88" x 62.5"
Max Gross Weight: 2,700 lbs (1,225 kg)
Volume: 233 cubic feet

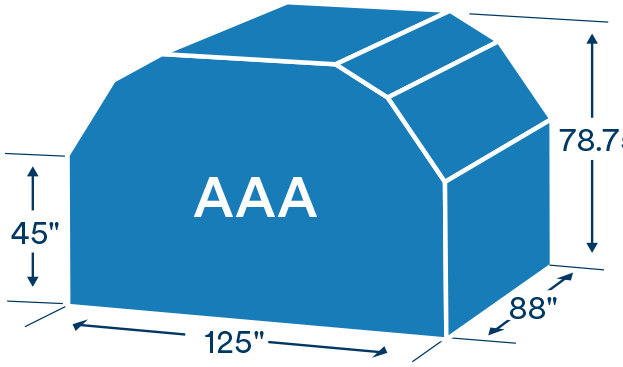

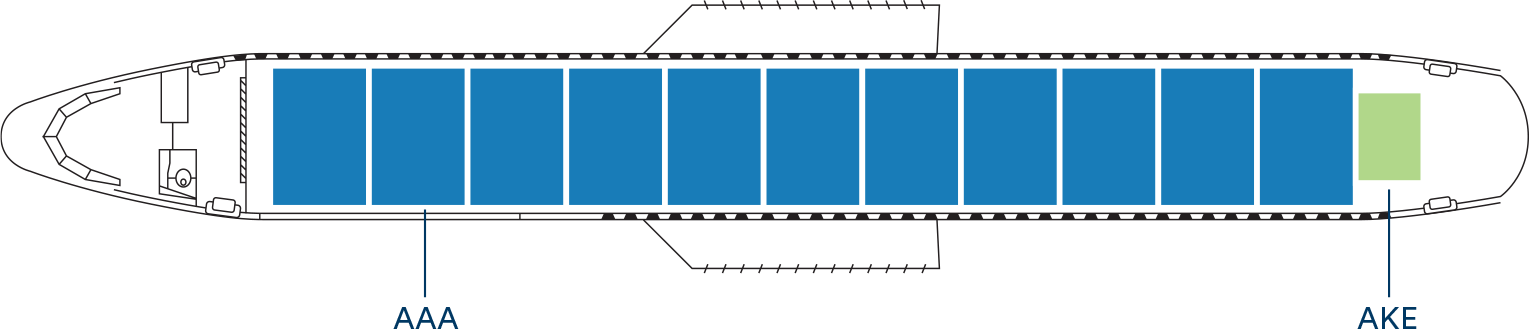

Aircraft: 737-700F/800F
Dimensions: 88" x 125" x 78.75"
Max Gross Weight: 7,350 lbs (3,330 kg)
Volume: 400 cubic feet

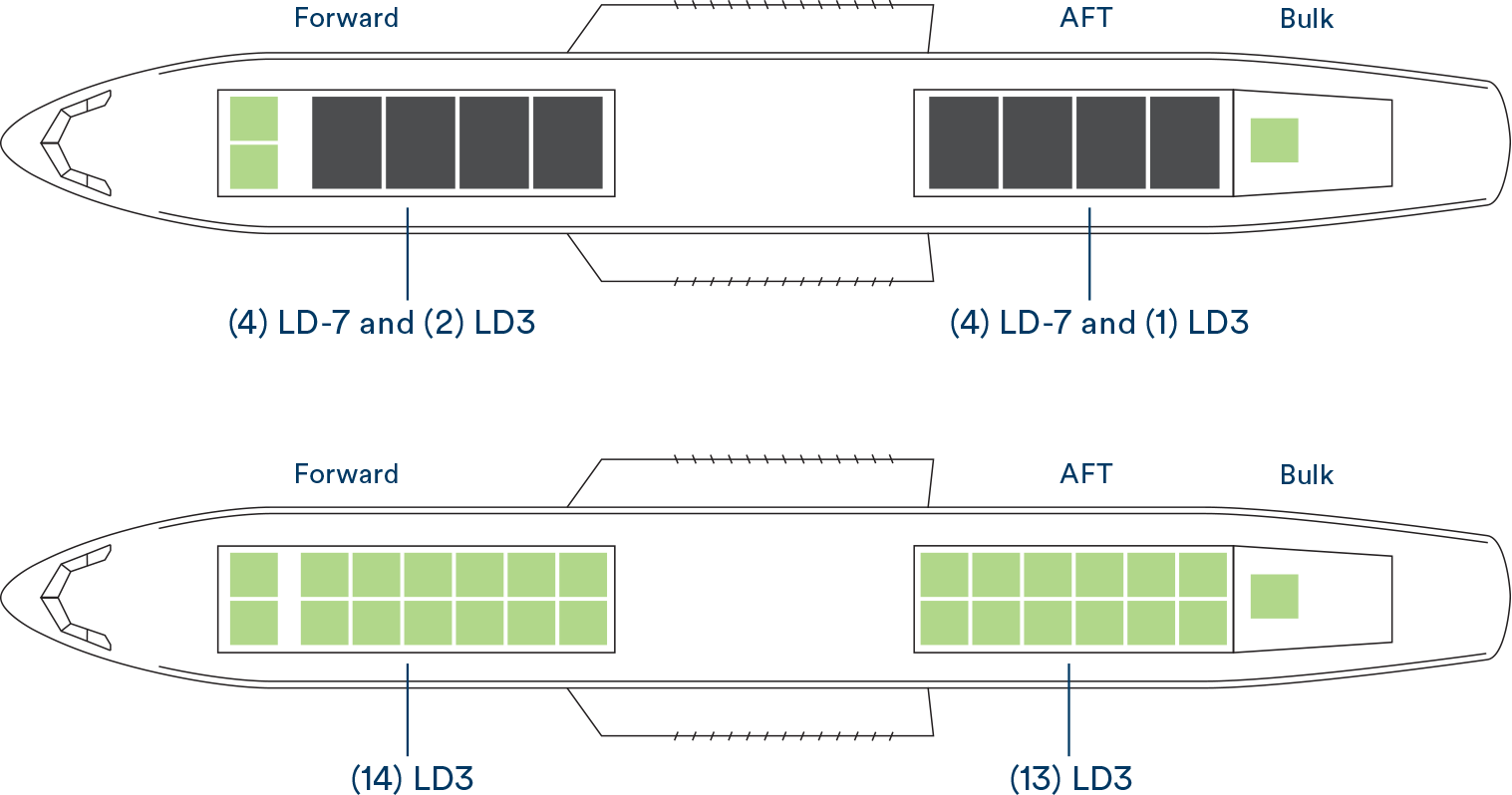

Aircraft: 787-9, A330
Dimensions: 125" x 60.4"
Max Gross Weight: 7,000 lbs (3,175 kg)
Aircraft: 737-700F/800F, 787-9, A330
Dimensions: 125" x 88"
Max Gross Weight: 10,200 lbs (4,620 kg)
Aircraft: 787-9, A330, Limited 737-700F/800F
Dimensions: 125" x 96"
Max Gross Weight: 11,100 lbs (5,035 kg)

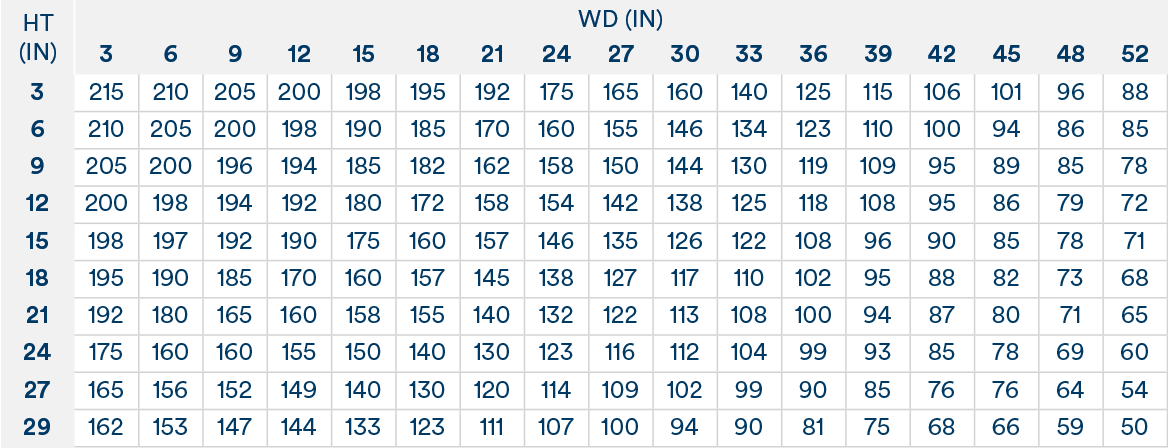

100, 200, 300, 400, 500
maximum length
100, 200, 300, 400
FWD Cargo Hold
maximum length
AFT Cargo Hold
maximum length
100, 200, 300, 400, 500
FWD Cargo Hold
maximum length
AFT Cargo Hold
maximum length
100, 200, 300, 400, 500
maximum length
